SAML Integration

Overview

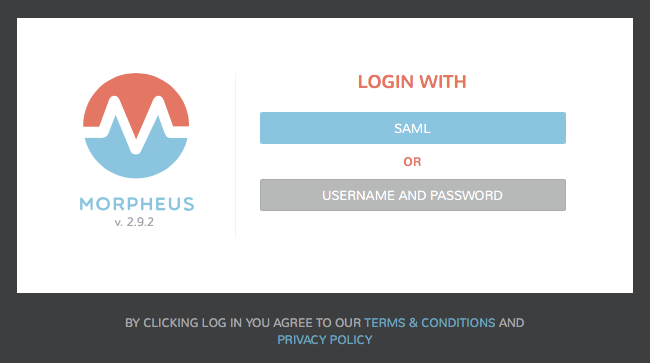

The Conduit SAML identity source integration allows customers to add user SSO to Conduit , authenticated by external login SAML providers.

../../_images/saml-2f9c4.png

Adding a SAML Integration

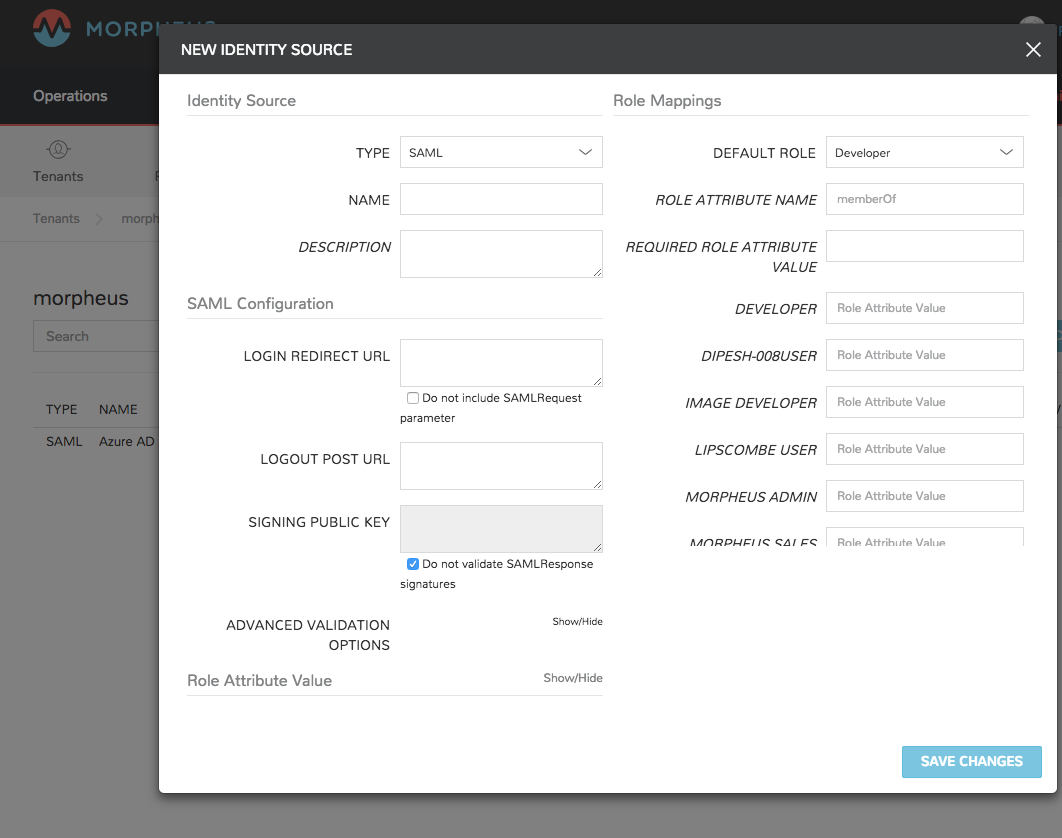

To add a SAML integration:

  1. Navigate to Administration -> Tenants
  2. Select a tenant.
  3. Select IDENTITY SOURCES in the Tenant detail page
  4. Select + ADD IDENTITY SOURCE.
  5. Select SAML (external login) from the TYPE field
  6. Add a Name and optional Description for the SAML integration
../../_images/SAML.png

There are 3 sections with fields that need to be populated depending on the desired configuration:

  • SAML Configuration
  • Role Mappings
  • User Attribute Names

SAML Configuration

LOGIN REDIRECT URL
This is the SAML endpoint Conduit will redirect to when a user signs into Conduit via SAML.
LOGOUT POST URL
The url conduit will post to when a SAML user log out of Conduit to log out of the SAML provider as well.
SIGNING PUBLIC KEY
Add the X.509 Certificate public key from the SAML provider.

Role Mappings

DEFAULT ROLE
Role a saml user will be assigned by default when no role is mapped
ROLE ATTRIBUTE NAME
The name of the attribute filed that will map to conduit roles, such a MemberOf
REQUIRED ROLE ATTRIBUTE VALUE
Role attribute value that a user must be assigned/a member of to be authorized, such as group or role in the SAML SP.

The rest of the Role Mapping Fields will be the existing Roles in conduit with a Role Attribute Value field.

User Attribute Names

GIVEN NAME ATTRIBUTE NAME
SAML SP field value to map to Conduit user First Name
SURNAME ATTRIBUTE NAME
SAML SP field value to map to Conduit user Last Name
EMAIL ATTRIBUTE NAME
SAML SP field value to map to Conduit user email address
../../_images/saml-c4576.png

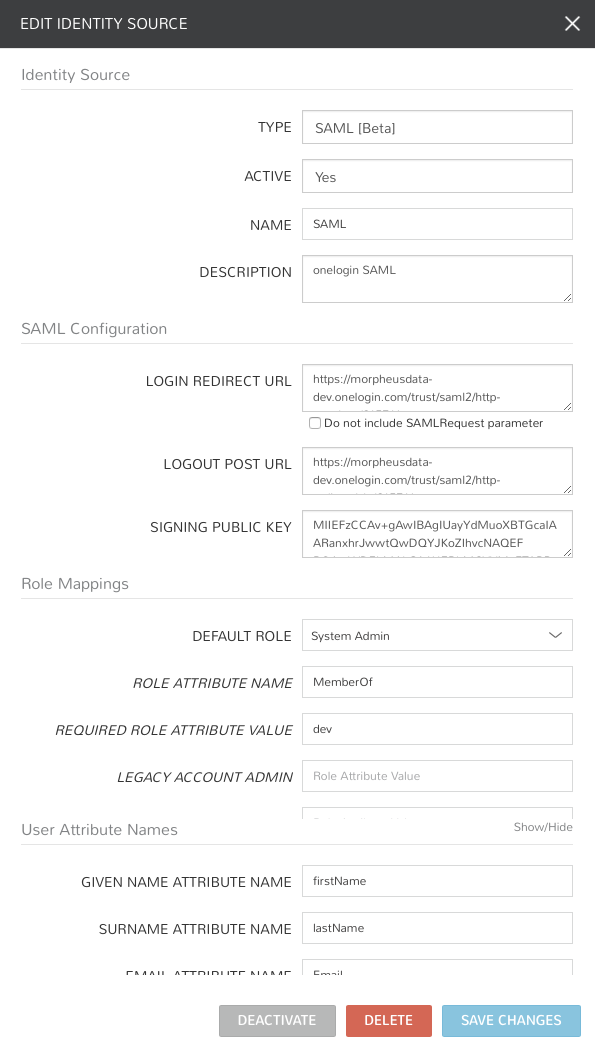

Once populated, select SAVE CHANGES and the SAML identity source integration will be added.

In the Identity Sources section, important information for configuration of the SAML integration is provided. Use the SP ENTITY ID and SP ACS URL for configuration on the external login SAML provider side.

  • SP ENTITY ID
  • SP ACS URL*
  • IDP LOGIN REDIRECT URL
  • IDP LOGOUT POST URL
  • SP METADATA
../../_images/saml-1ef5f.png

Sample Metadata code output:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?><EntityDescriptor entityID="https://someip.com/saml/CDWPjmZt" xmlns="urn:oasis:names:tc:SAML:2.0:metadata"><SPSSODescriptor AuthnRequestsSigned="false" WantAssertionsSigned="true" protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol"><NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified</NameIDFormat><AssertionConsumerService index="0" isDefault="true" Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="https://someip.com/externalLogin/callback/CDWPjmZt"/></SPSSODescriptor></EntityDescriptor>

Note

Different SAML providers will have different field names and requirements. A onelogin SAML Test Connector (IdP w/attr) was used for the example integration this article.

Onelogin SAML SSO

For Onelogin SAML integration, the following fields are mapped:

  • LOGIN REDIRECT URL : SAML 2.0 Endpoint (HTTP)
  • LOGOUT POST URL : SLO Endpoint (HTTP)
  • SIGNING PUBLIC KEY : X.509 Certificate
  • SP ENTITY ID: ACS (Consumer) URL Validator
  • SP ACS URL: ACS (Consumer) URL
