Infoblox

Features

• Network Pools synchronization
• DNS Zone & Zone record synchronization
• Host Record synchronization
• Total & Free IP status bar for networks
• Network Grid and List view with IP Status and records, date and user tracking
• Automatic and manual IP Reservations, DNS A/PTR record creation and deletion
• Use script variables like <%= variableX %> for evaluation of the key data in extended attributes

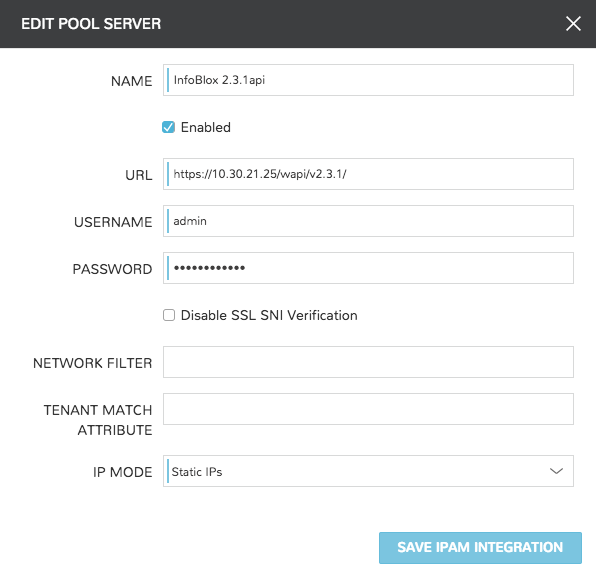

Adding Infoblox Integration

1. Navigate to Infrastructure - Network - Services

2. Select + ADD -> IPAM -> Infoblox

3. Enter the following:



   NAME

   Name of the Integration in Conduit

   Enabled

   Deselect to disable the Integration

   URL

   Infoblox wapi url. Example: https://x.x.x.x/wapi/v2.2.1

   USERNAME

   Infoblox user username

   PASSWORD

   Infoblox user password

   Disable SSL SNI Verification

   Leave selected to disable SSL SNI Verification

   NETWORK FILTER

   Filter which networks are synced into Conduit. Example: Network Filter: [ network_view=default&*Building=work ]

   TENANT MATCH ATTRIBUTE

   This can be set to the name of the extended attribute in Infoblox where Conduit will check for the id of a conduit tenant. This allows for setting the tenant’s Conduit id to an extended attribute field on a network view or network in Infoblox, and when the network or view is discovered by conduit, it will be auto assigned to the right tenant.

   IP MODE

   Static IPs or DHCP Reservations

4. Select SAVE IPAM INTEGRATION

Upon save the Infoblox IPAM integration will be created and the following will sync:

• Infoblox networks will be synced in and populate in the Infrastructure - Network - IP Pools tab and in the Infoblox detail page under the NETWORK POOLS tab.

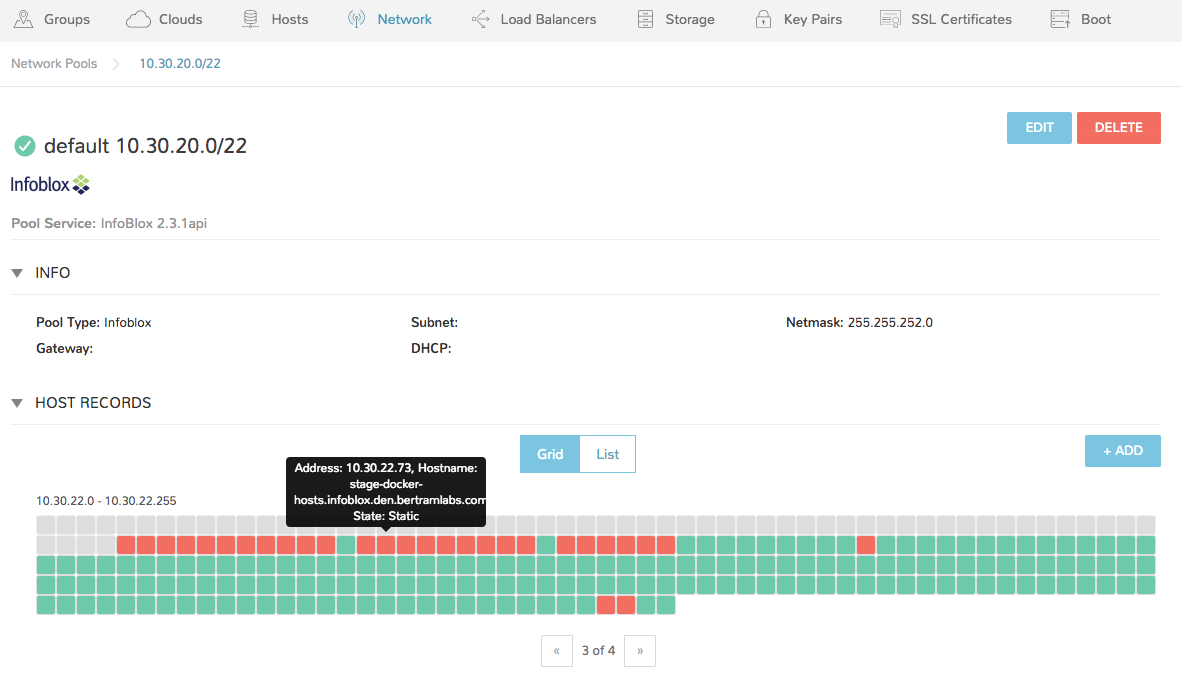

• Host Records will sync and populate in the Network Pool detail view (select an IP Pool name to view)



• DNS Zones will sync and populate under Infrastructure - Network - Domains and in the Infoblox detail page under the HOSTS tab.

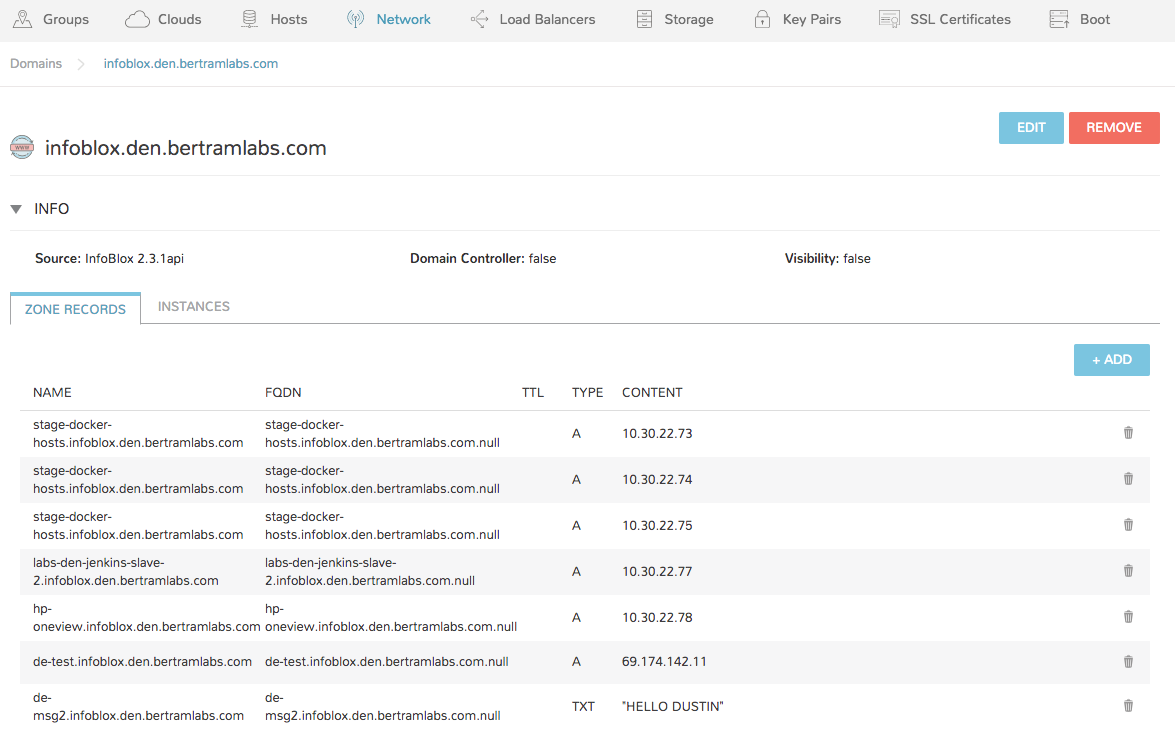

• DNS Zone Records will sync and populate



Adding IP Pools to Networks

Conduit can automatically assign the next available Infoblox IP in an IP/Network Pool and create the corresponding DNS records, as well as remove the records upon teardown. To enable this, add an Infoblox IP/Network Pool to the Network Pool section on a Network(s).

1. Navigate to Infrastructure - Network- Networks
2. Select a Network name and EDIT, or select ACTIONS - Edit
3. In the NETWORK POOL section, search for and select the name of the IP/Network Pool.
   • Gateway, DNS and CIDR must be populated for static/pool IP assignment
   • Select Allow IP Override to allow selecting between DHCP, Static entry and Pool Selection at provision time
   • Deselect DHCP server if a DHCP server will not be used on the network (only static and/or IP Pool IP assignment)
4. Select SAVE CHANGES

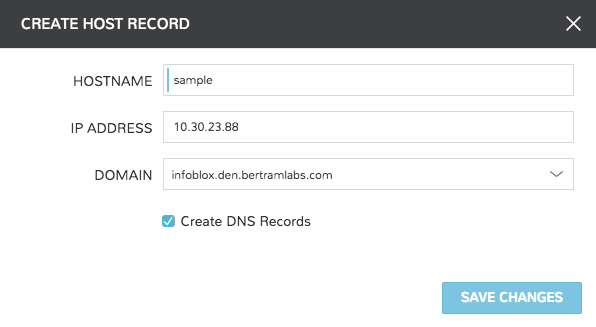

Creating Host Records

1. Select a Network Pool from Infrastructure - Network - IP Pools or Infrastructure - Network - Services - Infoblox

2. Select + ADD

3. Enter the following



   HOSTNAME

   Hostname for the record

   IP ADDRESS

   IP address for the Host Record

   DOMAIN

   Select an Infoblox Zone

   Create DNS Records

   Select to create DNS A and PTR Records in Infoblox

4. Select SAVE CHANGES

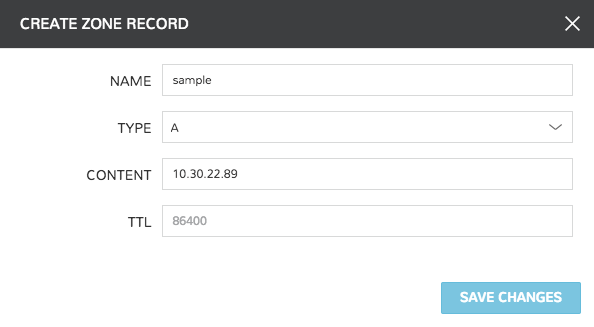

Creating Zone Records

1. Select a Domain from Infrastructure - Network - Domains or Infrastructure - Network - Services - Infoblox - Zones

2. Select + ADD

3. Enter the following



   NAME

   Name for the record, such as Hostname

   Type

   A, AAAA, CNAME, MX, NS, PTR, SOA, or TXT

   CONTENT

   Content of the record, such as IP or A Record

   TTL

   Time To Live value

4. Select SAVE CHANGES
